Thermal Inkjet Printers

Product-intro:

DJ45x

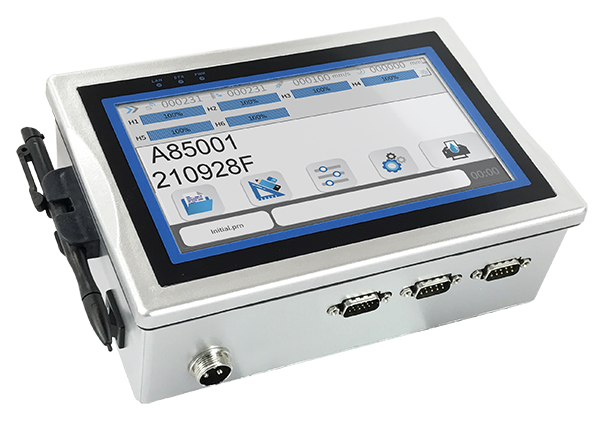

  • Friendly operation interface in a 7” touch-screen
  • Two print heads connection
  • Flexibly in installation



The DJ45x thermal inkjet coder provides coding in high-resolution at high-speed. Flexible remote controller mounting positions and easy print head integration on the production line. The 7" touch screen with intuitive user interface enables easy, error-free operation and data input directly on board.

Ideally suited to fast-moving consumer environments in markets. Dual print head operation for 2 sides of line coding. Graphic printing quality on paper, card, plastic, metal and other materials. Flexible label design, text, counters, clocks, graphics, logos, barcodes can all be included on the same label.

Benefits:

7”Full-Color Touchscreen

No need pages flipping in message creation, very straightforwardly in a print template creation. WYSIWYG user-friendly software provides even a beginner can quickly and efficiently to build-up a print job and manage printing.
dj45x 01



Multiple Languages

Multiple languages available on operation menu. International language character fonts and windows true fonts are flexible to load in the printer for printing.

dj45x 02







dj45x 03

Quickly Open a Print Job

Quickly show up the possible print job after prefix input at open file, further can preview the listed print jobs, easily to pick up the right print job in a large amount files.













PC Software

Easily experience the feature of Dotjet printer’s software. It’s an assistance of mass print message creation, as well as a tool for operator training. Quickly calculate the ink consumption for every single message has created, instead of must use a printer controller.

dj45x 04







Robust Print Head Module

Standard accessory. Durable housing made of milled and anodized aluminum, plus an anti-mechanism to against printed product punch and ensure every print is the best. Alternatively, the print head can equip a Fine- Adjustment Mechanism let users adjust the print distance with slight and accurate changes to make the print nozzle as close to the print surface as possible.



dj45x 05







GS1 Barcode
Compliance


     The DJ45 series are the right printing equipment driving right ink to generate good quality

     GS1 barcodes against various product substrates.



dj45x 06


dj45x 06 2







Inkjet

Dotjet provides aqueous inks, solvent inks, UV curable inks suitable for primary and secondary packaging printing, we simplify the ink cartridge items but for wide-range inkjet applications, reduce the cost from the customer site in stock.

dj45x 07







dj45x 10

Specs:

Specifications

Technology hp TIJ2.5
Power requirement AC110-220V, 50/60HZ
Display 7” Color LCD with LED backlight
Operating temperature 5℃ ~ 45℃ (41°F - 112°F)
Controller operating system Linux
Message storage Up to 999 messages
Print head controlled ability Two hp TIJ2.5 print heads
Print line Multuple depand on character size
Print height Selectable font size from 1mm to 12.7mm
Print speed 60m/min (Water ink)
90m/min (Solvent ink)
Max. print length 1 meter
Print resolution Max. 600dpi x 600dpi / Regular 300dpi x 300dpi
Ink throw distance Recommended 6mm
LED Indicators Ink low, print on/off
Print Capability Alphanumeric, logos, date/time, shift code, serial number, lot/box number,
2D code, 27 languages characters print.
User interface WYSIWYG. Multiple languages available (some may need translation)
Print head data line Standard 75cm, maximum 200cm
Weight Controller 820g (Excludes bracket)
Print head 380g (Excludes cartridge and bracket)
Dimension(L/W/H) Controller 205x140x68 (mm) 8.1x5.5x2.7(inches)
Print head 130x115x94 (mm) 5.1x4.5x3.7(inches)
Optional Encoder, bulk ink supply, external low ink alarm
Documents:

pdf01

pdf01

pdf01

Videos:



video cover dj45x 1 video cover dj45x 2 video cover dj45x 3
video cover dj45x 4



  • Friendly operation interface in a 7” touch-screen
  • Two print heads connection
  • Flexibly in installation

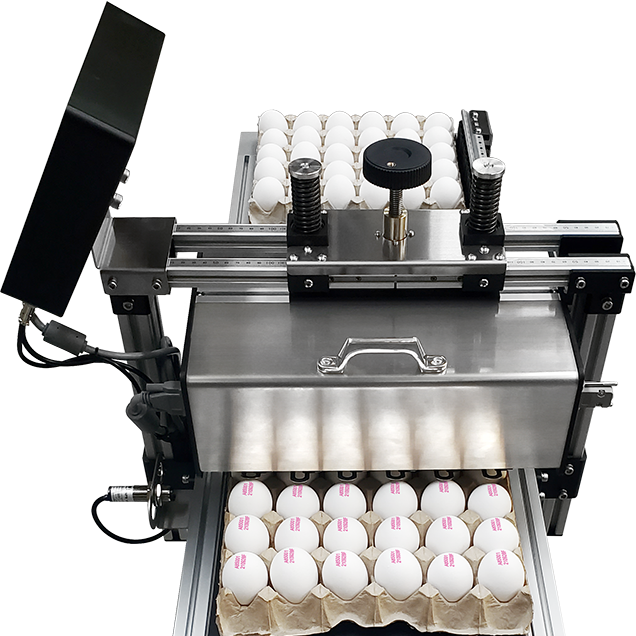

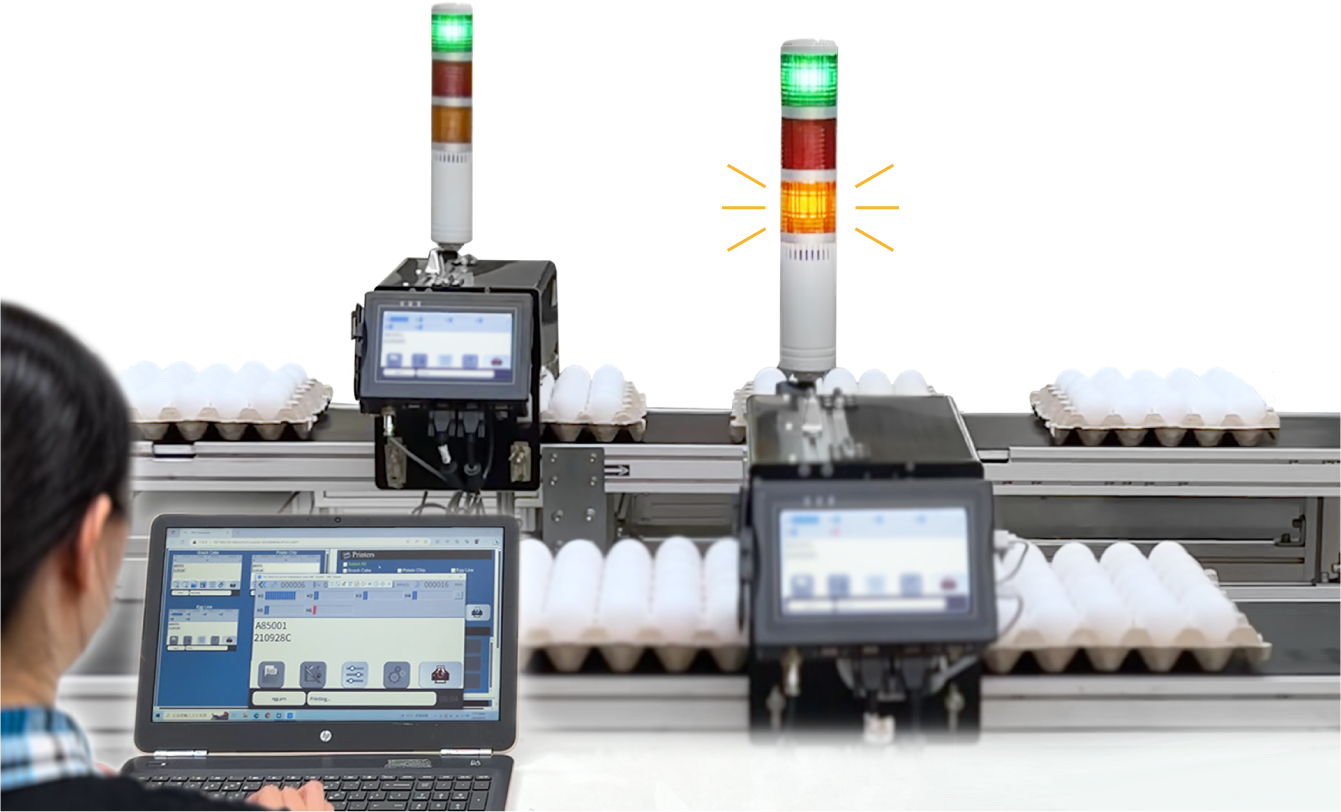

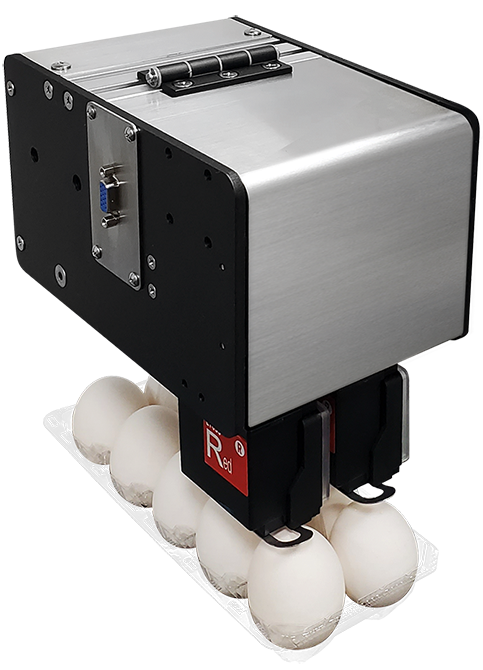

  • Integration with egg grading system
  • Allowing the print head module height manual adjustment against the egg size

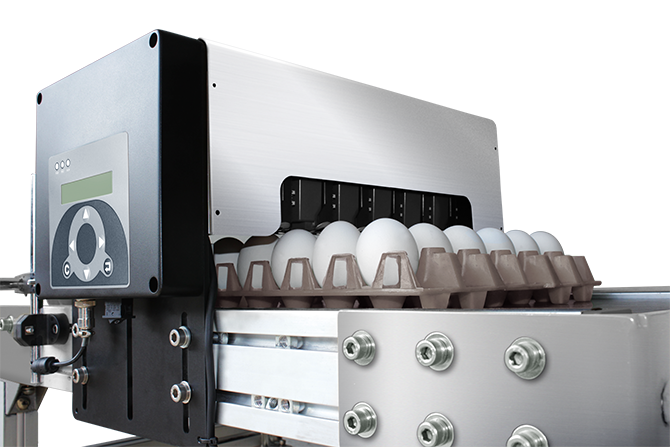

  • Easily to mount on a conveyor as a stand-alone egg on tray coding machine
Product-intro:

DJ1

  • A simple but versatility TIJ inkjet printer
  • High print speed, reliable and maintenance-free
  • Robust and economic, easy in operation





The DJ1 is the entry level, a compact, cost attractive, all in one, easy to set up and use, ideally suited to data and text coding on all kinds of product materials. It is designed for straightforward self installation, set up and use without technical knowledge. The Thermal Inkjet print head provides sharp, high resolution codes on a variety of substrates without ongoing maintenance or support requirements.

Benefits:

Interesting Design

Although the DJ1 is a cost-efficient TIJ printer, very simple to use, but it owns the feature of compact and robust. usb







Flexibility in Print Message Creation

PC software and Android APP provide a quick method of building the print messages, simply download to the DJ1 via USB stick and keep the backup. The printing message is secure on the printer for someone could mis-operate.

qrcode







How Simple The Printer Operation Is

6 buttons can implement full printing functions. The interior memory with the capacity of storing 30 print jobs satisfying to simple coding need.





qrcode







Flexibility in Installation

Compact unit, and the print head is flexible in turning for different angles to suit various needs in printing installation.

qrcode







qrcode

Automatic Ink Identification

PC software and Android APP provide a quick method of building the print messages, simply download to the DJ1 via USB stick and keep the backup. The printing message is secure on the printer for someone could mis-operate.











Excellent Performance in Solvent Ink

Long decay time, excellent adhesion to most of substrates, highly performance in hp TIJ2.5 cartridge inks provide

aqueous inks, solvent inks, UV curable inks, and security inks suitable for primary and secondary packaging printing.





dj1 14

Specs:
Specifications
Technology hpTIJ2.5
Housing Aluminum casting
Power requirement AC 110-220v
Operation temperature 5°C ~45°C (41°F - 113°F)
Memory 30 print jobs
Print line 1 1- 4 lines
Print height 4 lines - 1.5mm, 4 lines - 3mm, 2 lines - 6mm, 1 line - 12.7mm
Print speed 1 line - 60m/min, 2 lines - 45m/min, 4 lines - 33m/min
Max. print length 512 characters
Print resolution 300dpi
Ink throw distance 6mm
Weight 652g (excluding cartridge)
Software function Any of languages text, lot and box number, date-time code, shift code, logo
Print font Available two character fonts for printing
Dimension (L/W/H) 202mm x 143mm x 120mm
Documents:

pdf01


Videos:
video cover dj1 1 video cover dj1 2 video cover dj1 3
video cover dj1 4 video cover dj1 5 video cover dj1 6
video cover dj1 7 video cover dj1 8 video cover dj1 9
video cover dj1 10
  • Satisfying basic coding need
  • The most cost-efficient TIJ printer
  • Simple to use but robustness
Product-intro:

DJ45plus

  • Functional and versatile software ability
  • Multiple interfaces capable of printing external data
  • Printing via internet connection



The DJ45plus is an advanced version of the DJ45x, with full functions of the DJ45x. Based on the DJ45x, it further expands the capability of data printing and printer control from an external device, such as data printing received through communication interfaces like RS232, USB, and Ethernet. Printing control by protocol commands. Receive the print file, data, and image remotely from a central PC. Printer screen can be monitored and operated through wifi, MySQL database printing..etc., it performs versatile functions to apply in a wide range of coding and marking applications.

Benefits:

Full of DJ45plus inkjet printing functions
Owning versatile inkjet printing functions beyond your expectation, WYSIWYG user-friendly software provides a way can straightforward to create a print template and quickly set up parameters.

dj45x 02







Multiple Communication Interfaces

The software of DJ45plus was designed to support multiple communication interfaces including TCP/IP, RS232, USB and Wifi(By Router), emphasize the extending of coding and marking capability. Through the communication interfaces, let the DJ45plus becomes a versatile TIJ printer performing various applications in diverse industry. Some applications look complicated, Dotjet work team will give you fully support and simplify your customers particular printing request and assist you easily execute wide range of applications beyond basic printing.



usb







Remote

Control

Monitoring and managing Dotjet’s inkjet printers remotely has become very easy, it secures printing job is running on a production line error-free, conveniently supervisor remotely manages and check up on all inkjet printers running status installed at different locations in your network’s range. The Dotjet’s inkjet printers come with wireless and wifi connection capabilities, plus Dotjet owns develop printer remote management software and teamwork support, it worth you experience the advanced function.

 dj4504







Automating Database Printing

Use a database documenter to print the design template of database objects. The database can be saved in advance in the Dotjet’s printer memory via USB driver or convey single data via Ethernet from a PC. Furthermore, fetching data from a MySql database which allow Dotjet’s inkjet printers print respective database objects of a common MySQL database. The function can expand to various inkjet application, contact Dotjet’s team work to learn more.




dj45 3







Printing

Protocol

Dotjet’s inkjet printers provide multiple printing protocols given the communication method for an automatic centra system, print servers or a host computer. The protocols allow an external system to submit one or more print jobs to Dotjet’s inkjet printers and perform tasks such as querying the status of a printer, obtaining the status of print jobs, or canceling individual print jobs. The feature allows for the utmost flexibility, future expandability and helps manufacturers comply with the track-trace regulations of various industries.



 dj4504







Printing Data Collection

All kinds of printing data from Dotjet’s inkjet printers can be collected in a private server, this includes metadata about all the printing message that you print, including timestamps, printer ID, printing count, text and numbers in the print message, and the ink consumption status.

Dotjet developed a Data analytics software tools enable to analyze vast stores of data for great advantage on production line management. The Data analytics software can mine data that tracks a production activity – from current sales to historic inventory – and process it based on data scientists’ queries.



dj4505







Bulk Ink Supply



Efficiently to save time and money in mass products coding requirement
Water Bulk Ink – Adopt a very simple structure to extend ink supply with a 370ml bulk ink, disposable ink box, easy to install.



Solvent Bulk Ink - 400ml ink capacity meet the need of high-volume print application, low per copy, and minimal user intervention required.

dj4507







dj45 6



Specs:
Specifications

Technology

 HpTIJ2.5

Power requirement

 AC110-220V, 50/60HZ

Display

 7” Color LCD with LED backlight

Operating temperature

 5℃ to 45℃ (41°F - 112°F)

Controller operating system

 Linux

Message storage

 Up to 999 messages

Print head controlled ability

 Two hp TIJ2.5 print heads

Print line

 Multuple depand on character size

Print height

 Selectable font size from 1mm to 12.7mm

Print speed

 60m/min (Water ink)
 90m/min (Solvent ink)

Max. print length

 1 meter

Print resolution

 Max. 600dpi x 600dpi / Regular 300dpi x 300dpi

Ink throw distance

 Recommended 6mm

LED Indicators

 Ink low, print on/off

Print Capability

 Alphanumeric, logos, date/time, shift code, serial number, lot/box number,
 GS1 barcodes/2D code, database and 27 languages characters print, External data

User interface

 WYSIWYG. Multiple-language available (some may need translation)

External data  interface

 RS232, USB, Ethernet, TCP/IP

Database print format

 CSV

Particular features

 MySQL database, print data collection, protocol control,
 image in database, multiple printer remote control by DotW_CM software

Print head data line

 Standard 75cm, maximum 200cm

Weight

 Controller 820g (Excluding bracket)
 Print head 380g (Excluding cartridge and bracket)

Dimension (L/W/H)

 Controller  205x140x68 (mm) / 8.1x5.5x2.7 (inches)
 Print head 130x115x94 (mm) / 5.1x4.5x3.7 (inches)

Optional

 Encoder, bulk ink supply, backstage analysis/manage software

Documents:

pdf01

pdf01

pdf01

Videos:
video cover dj45plus 1

video cover dj45plus 2

video cover dj45plus 2

Read More:

Multiple I/O Functions Box

To manage diverse applications need the printer control by external machine interface, the functional box with 8 connectors flexibly for defining to Input or Output in parallel or serial signal.



more01





Photocell/Encoder Signal HUB

Splitting photocell and encoder signal into multiple outputs synchronize all printers start printing in one signal source.



more02





qrcode

Mini Router

300Mbps wireless data rates provides the DJ45plus to performs wireless connection with external device or system. Easy installation in minutes.





Protocol Button

Allowing the printing protocol embed in the button to implement remote control by the buttons.



  • Start print
  • Stop print
  • Reset print count
  • Open a file count
    ...Multiplicity as your define

qrcode
