High-Resolution Printers

Applying high resolution inkjet codes to primary and secondary package material, eliminating the need for pre-printed boxes and labels, helping to reduce inventory, scrap and waste.

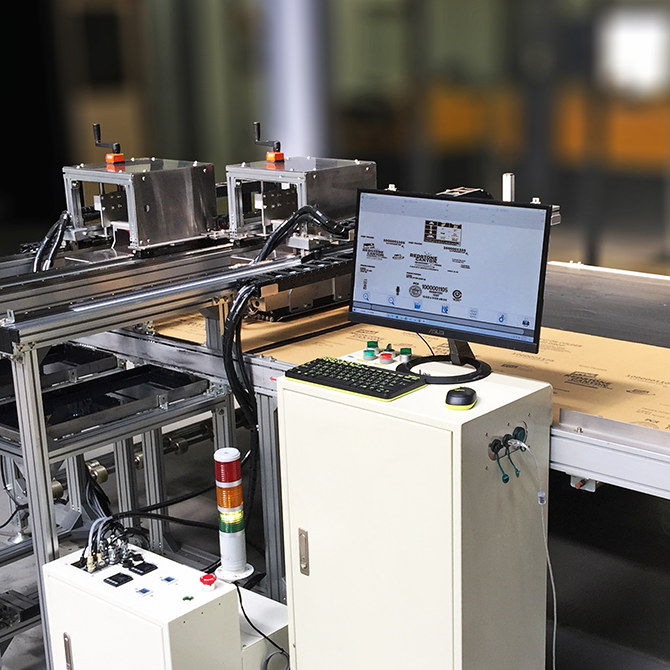

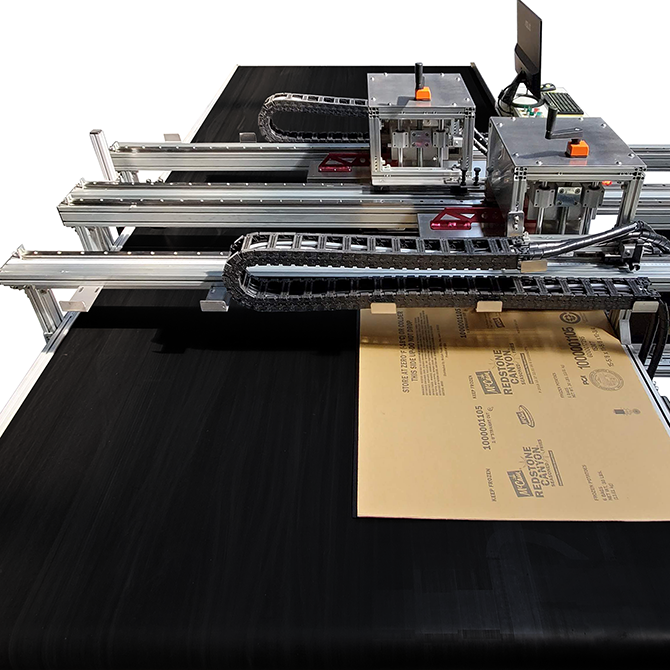

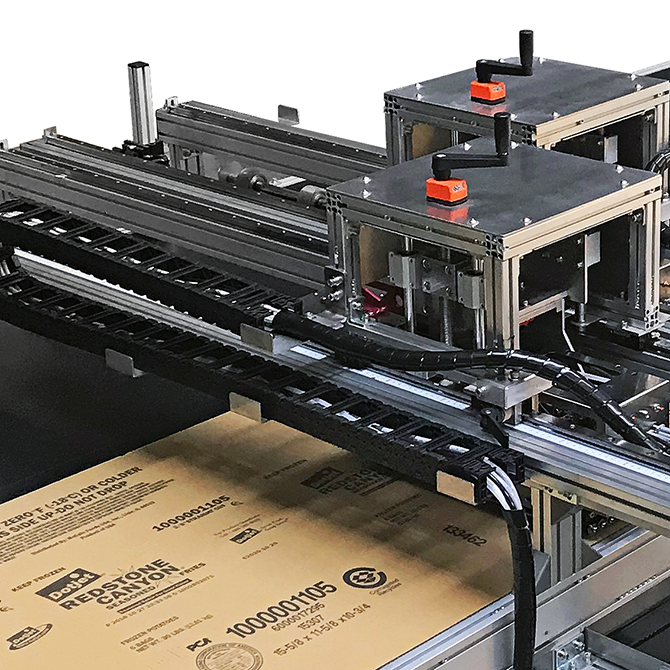

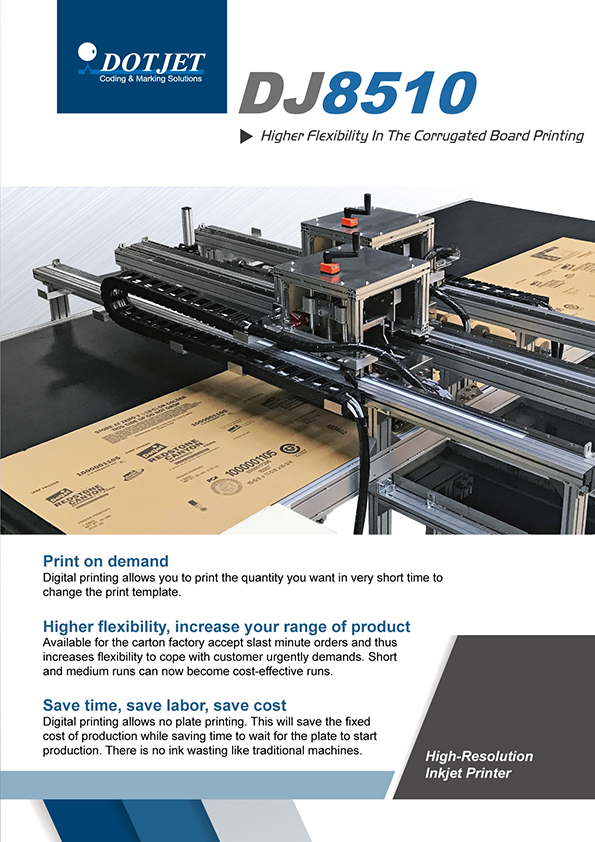

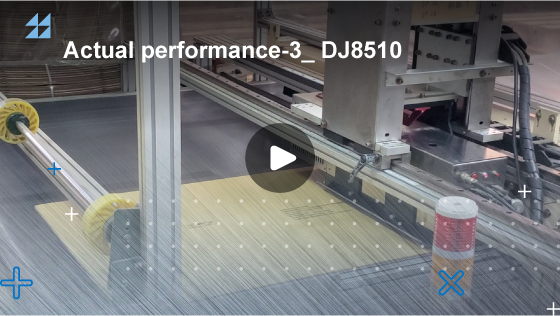

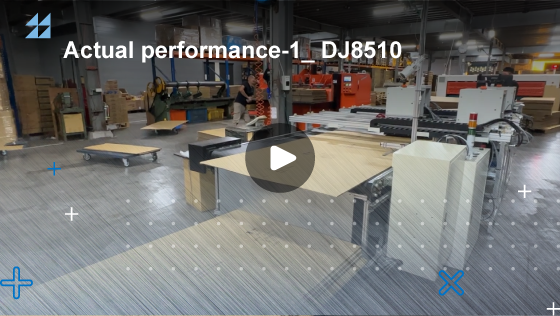

DJ8510

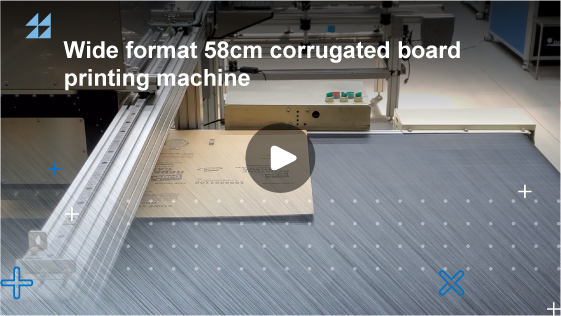

  • Wide-format up to 58cm print
  • The best solution to replace traditional roller printing for corrugated carton industry
  • Excellent in mass print message management



High resolution codes up to 70 mm (2.8 in) print height, 18 mm (2.8 in) head is alternative which are compatible with the inks apply on porous and non-porous substrates with consistently high-resolution text, logo and barcodes printing.

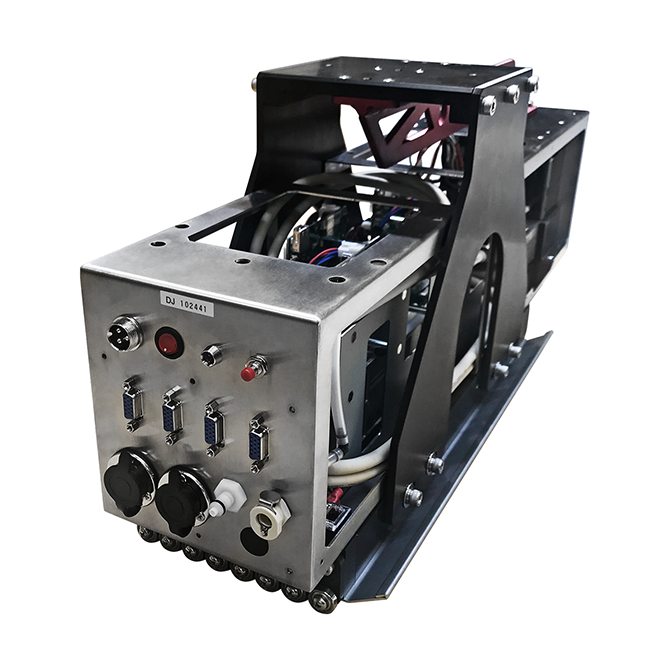

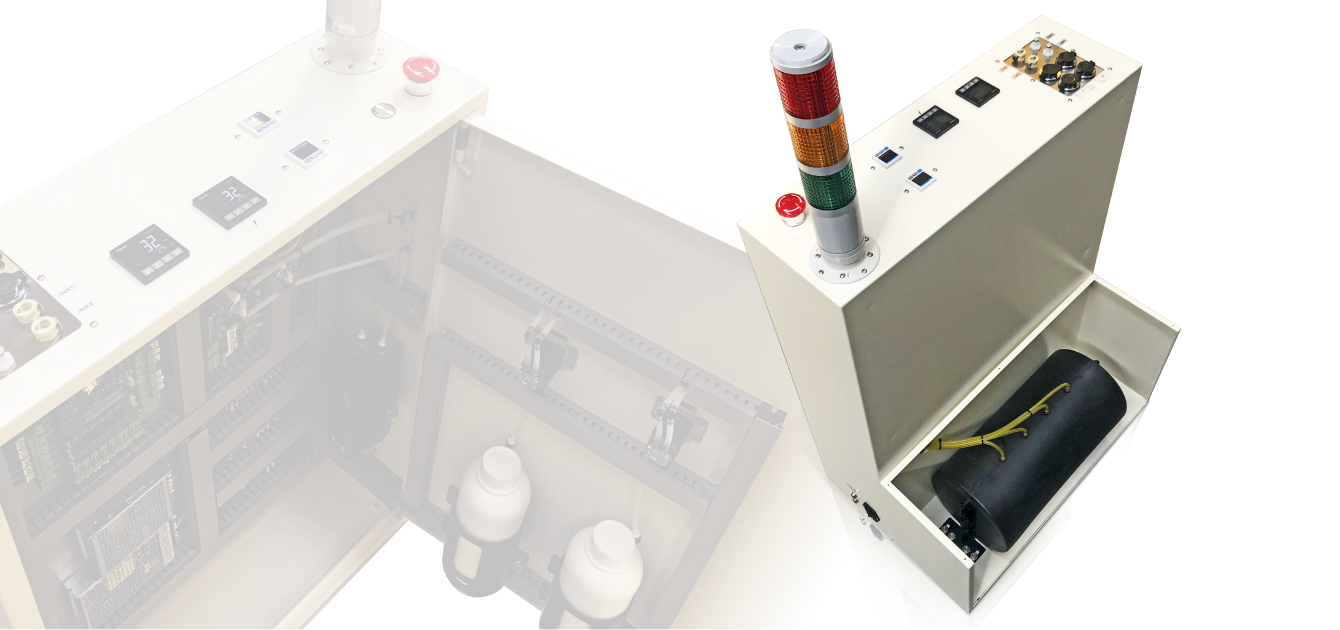

Advanced ink delivery system
Negative air pressure stabilized ink supply to the print head for printing. Positive air pressure performs automatic ink priming, draining and purging.



dj8510 06







Advanced ink delivery system
Negative air pressure stabilized ink supply to the print head for printing. Positive air pressure performs automatic ink priming, draining and purging.



dj8510 06

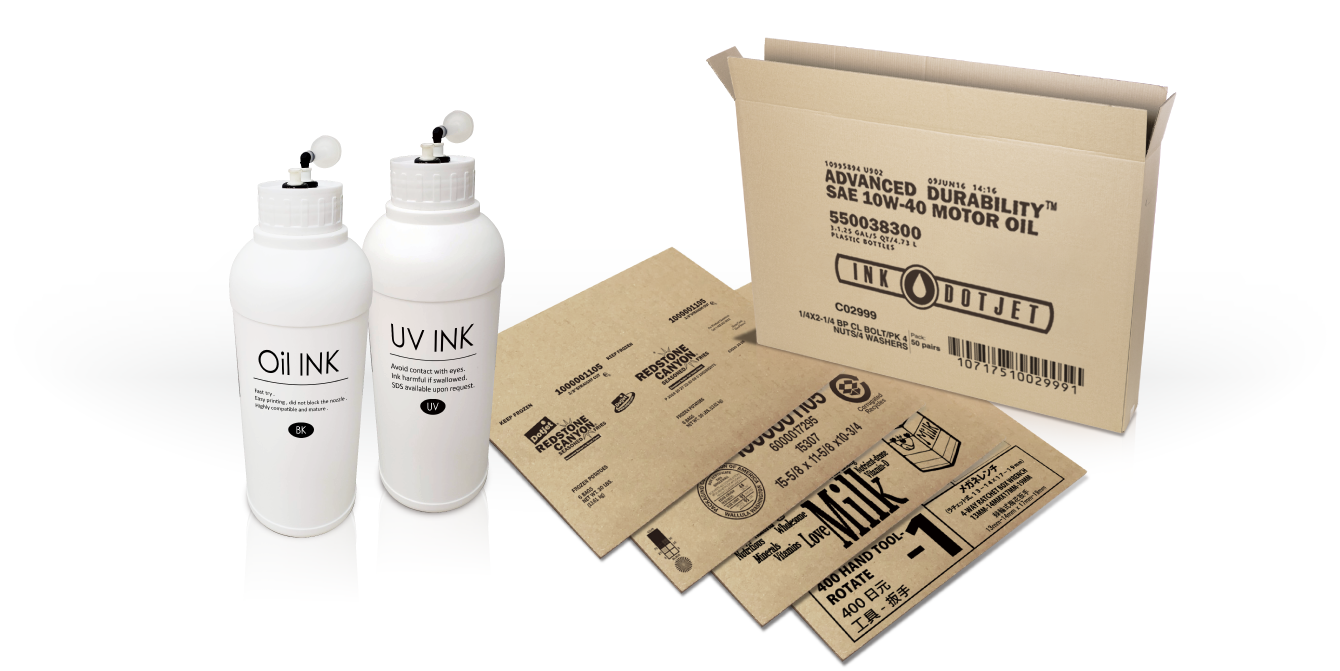

Ink
Oil inks give the porous substrates and UV ink provide the non-porous glossy substrates with a smooth print.

dj8510 06

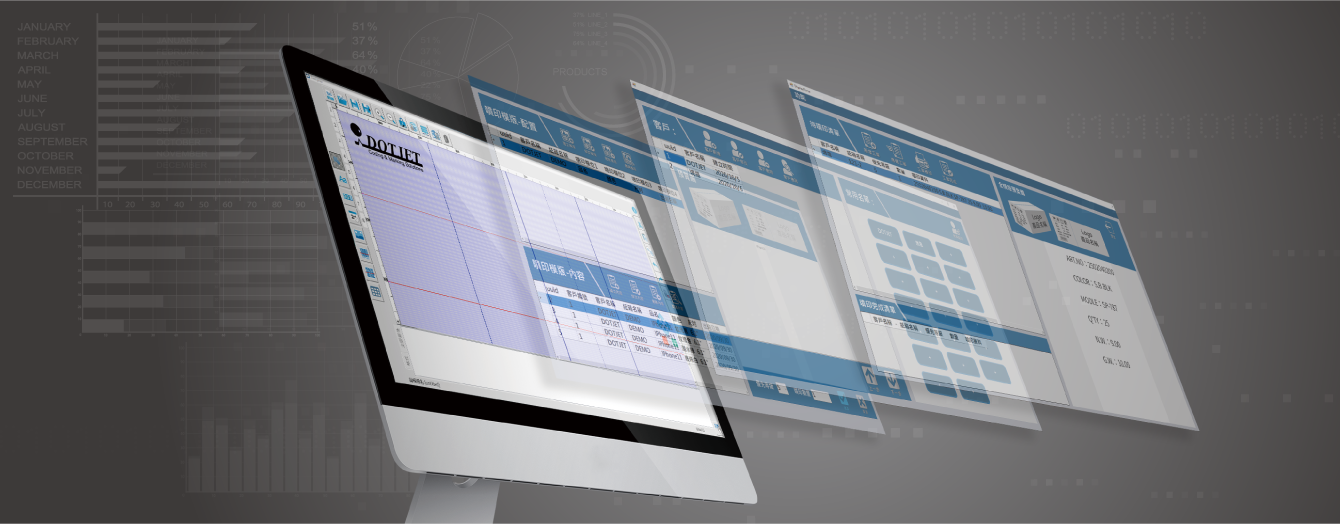

Software
DotW_MD software provides even if a beginner create print template with no barrier. Quickly reopen any print template under thoughtful management.



dj8510 06







Remote control / monitor
Controller orients internet capability allowing to manage the printer works remotely. Printers status can always in monitoring at anywhere.



dj8510 06

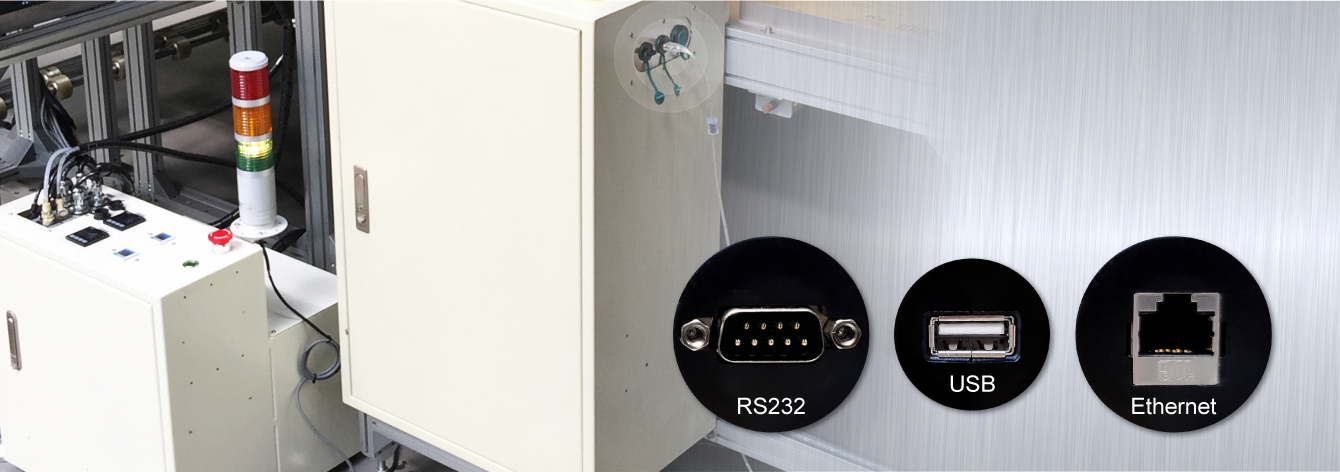

Dirvese connection in connectivity
RS232, USB, Ethernet make the operation software implement versatile functions in connectivity.



dj8510 06





Specifications

Technology

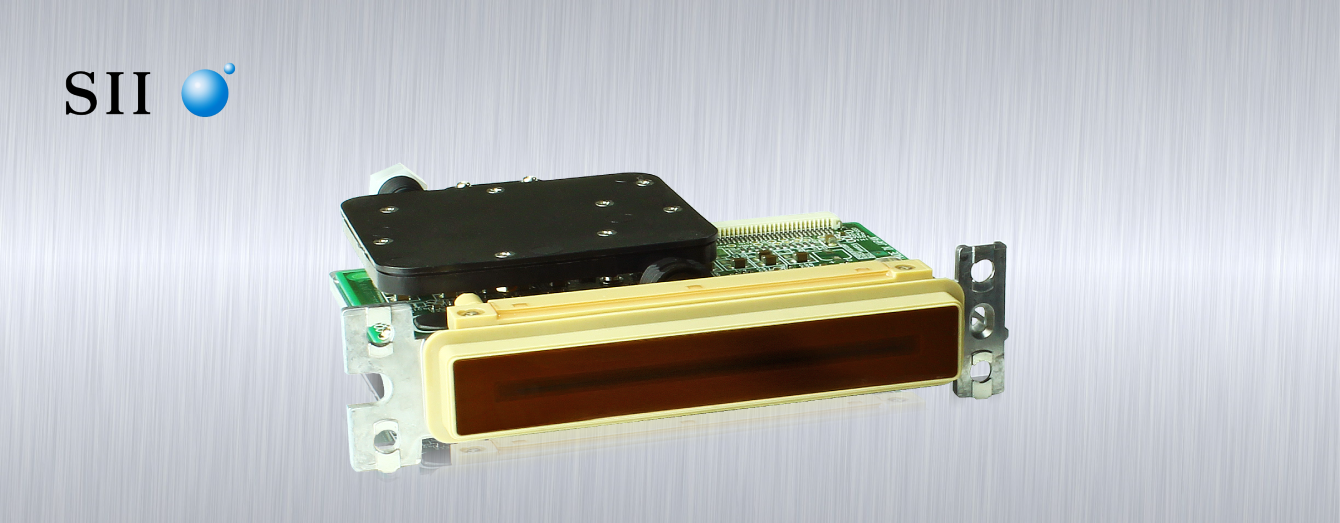

SII Piezoelectric technology

Electrical Requirement

AC 90-240V, 50/60 HZ

Controller and display

Controller : PC base, Windows operating systemController : PC base, Windows operating systemMonitor : Customer-made

Operating temperature range

5°C ~45°C (41°F - 113°F)

Message storage

Unlimited
Built-in message storage capacity

4GB SDD available for message storage, actual message

size will vary based on content

Print head

Stitching with four 510BN print negines - 4510 head

Stitching with eight 510BN print engines - 8510 head

Maximum print height

290mm - 4510 head

580mm - 8510 head

Print range Maximum 58cm x 200cm
Print resolution 180 dpi
Printing orientation Vertical printing
Distance to print Surface Maximum 6.5mm (0.25 inches)
Print speed

148 ft/min (45m/minute) at 180dpi - Standard print

72 ft/min (22.5m/minute) at 180dpi - Darken print

Print Software Alphanumeric of full true type fonts.
Scalable text; rotation, mirror and inverse printing.
Graphic format supported using 1 bit bitmap file. (*.bmp)
GS1 barcodes / 2D codes.
Remote monitor and control ability.
Print message and file management.
Database print format CSV
External data communication interface RS232, USB, Ethernet, TCP/IP
Max. distanceMax. distancecontroller to print head 5m
Particular features MySQL database, Print data collection
Ink usage Oil and UV curing inks
Ink supply 1 liter bottle ink feeds to per 4510 print head
Dimension (L/W/H) Print head 61 x 13.5 x 19 (cm) / 24 x 5.3 x 7.4 (inches)
Ink delivery system 62.5 x 41 x 114 (cm) / 24.6 x 16.1 x 44.8 (inches)
Optional Encoder, bulk ink supply, External low ink alarm
