DJ880
- Thermal inkjet egg coder with 6 printheads.
- Stand-alone or integrated with an egg grading system.
- Remote-monitor and control of print jobs
DJ880 series eggshell printers provide solutions for multiple scales of egg coding demands, from a simple eggshell printer to a network-connected eggshell printer which allows to remotely control and monitor. DJ880 series can be flexibly integrated with an egg grading systems and allow users to manually adjust the height position of printhead module against egg sizes. With options of models, you will find the most proper egg coder from Dotjet.
Flexibility in printer organization
 |
 |
 |
|

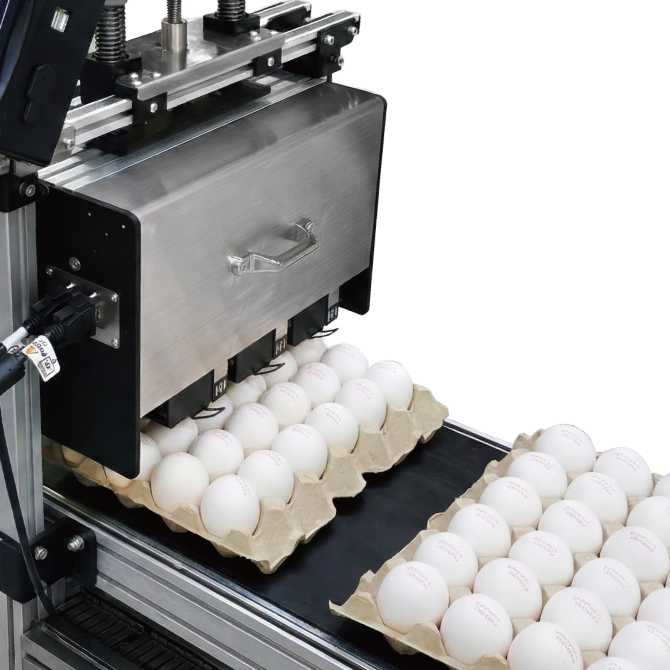

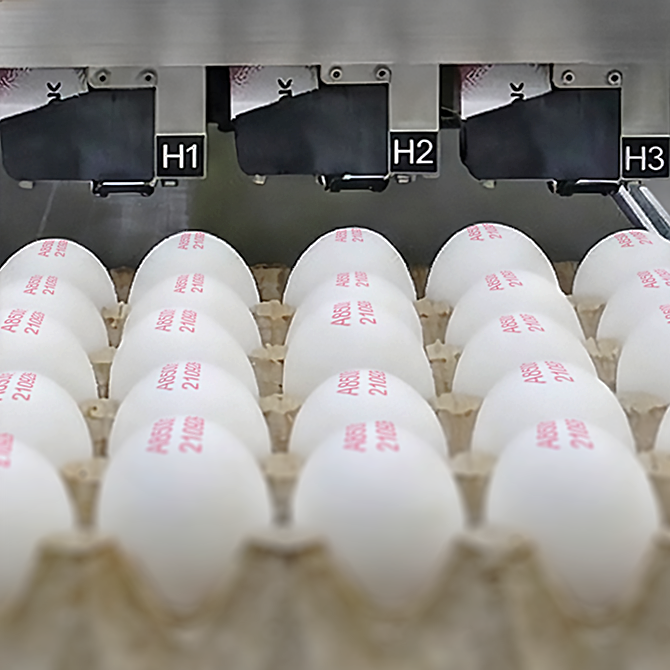

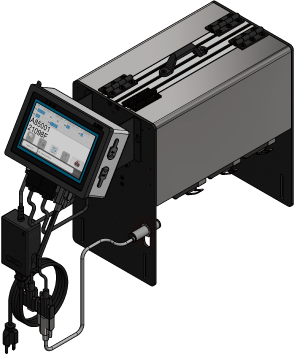

CM6 Integrating with egg graders to meet eggs on tray coding demands in automatic egg production line. |
C6EV

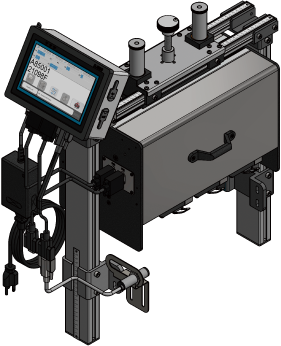

The print head module mounted in a lifting mechanism ease moving up and down to meet different egg size printing demand. |

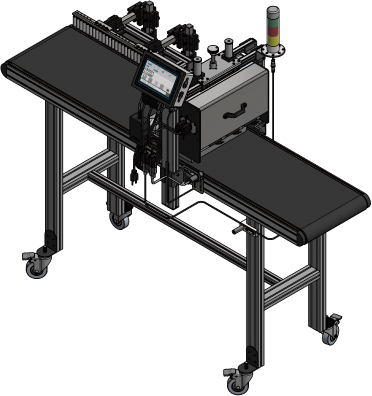

CC6
The print head module mounted in a lifting mechanism ease moving up and down to meet different egg size printing demand. With a kit of conveyor system, including an encoder set.(Conveyor dimensions: L160 x W75 x H125 cm) |

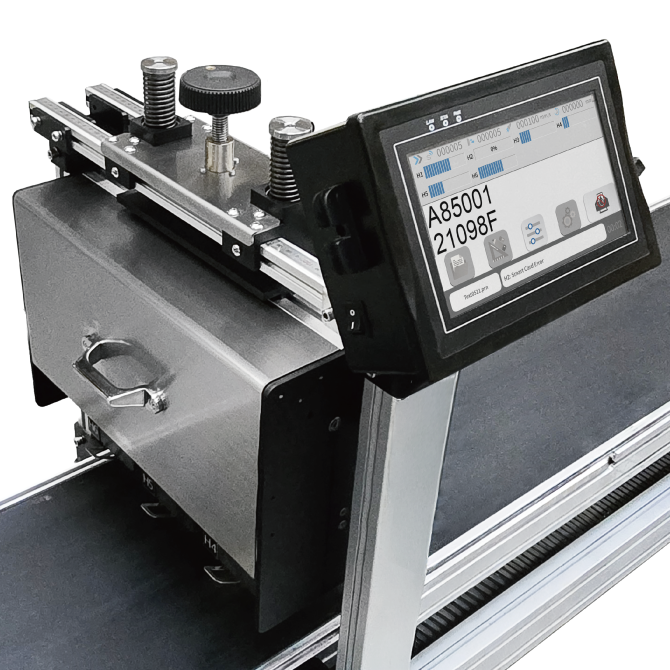

Easy-to-use and advanced printing controller
7” touchscreen display, the DJ880 controller provides a simple, intuitive software achieves operator can quickly edit text, expiration dates, logos and bar code as well as set up printing parameters instantly drive the print head module to work.
|
 |
 |

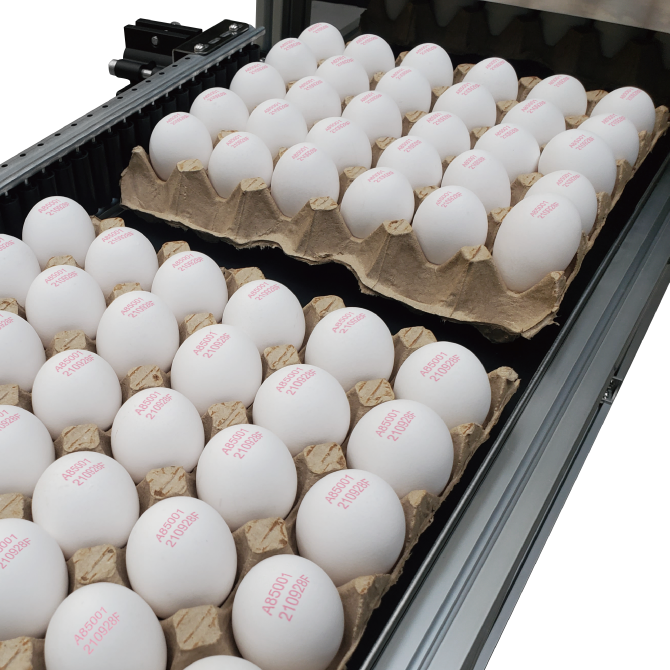

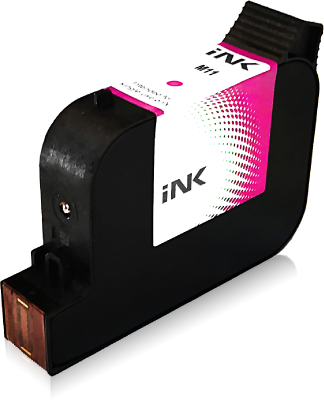

Thermal inkjet cartridge Proven food-grade ink in hp TIJ2.5 cartridge with long decap time and excellent contrast for clear egg coding. (Color: Magenta) |
|

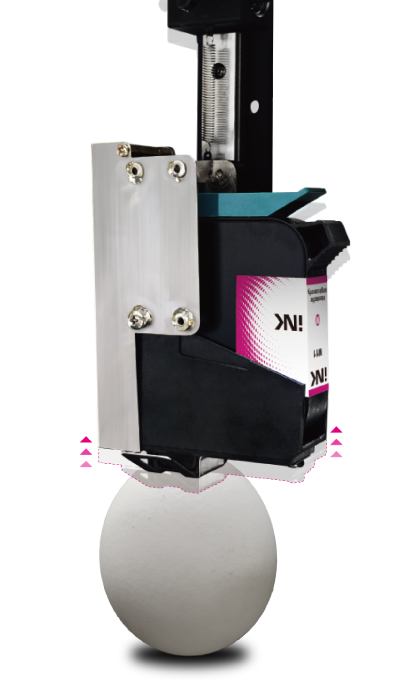

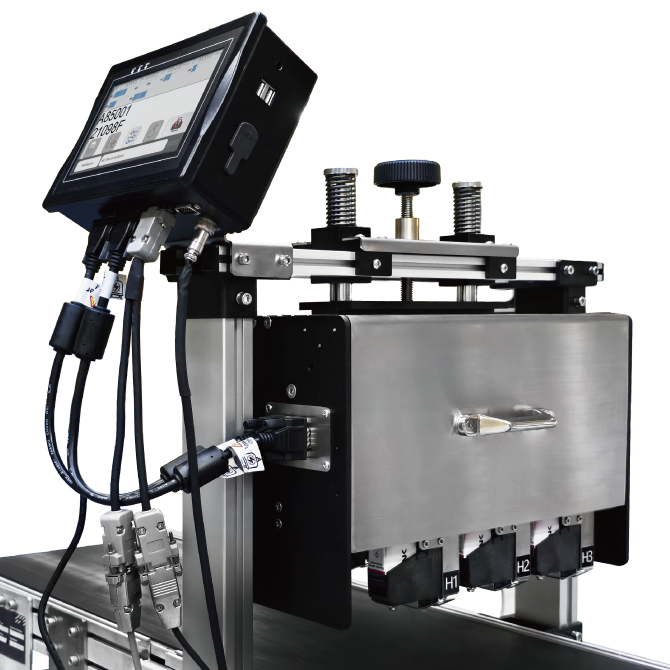

Spring Return Mechanism The sprint facility of the printhead kit automatically adjusts the printhead distance to the egg. |
 |

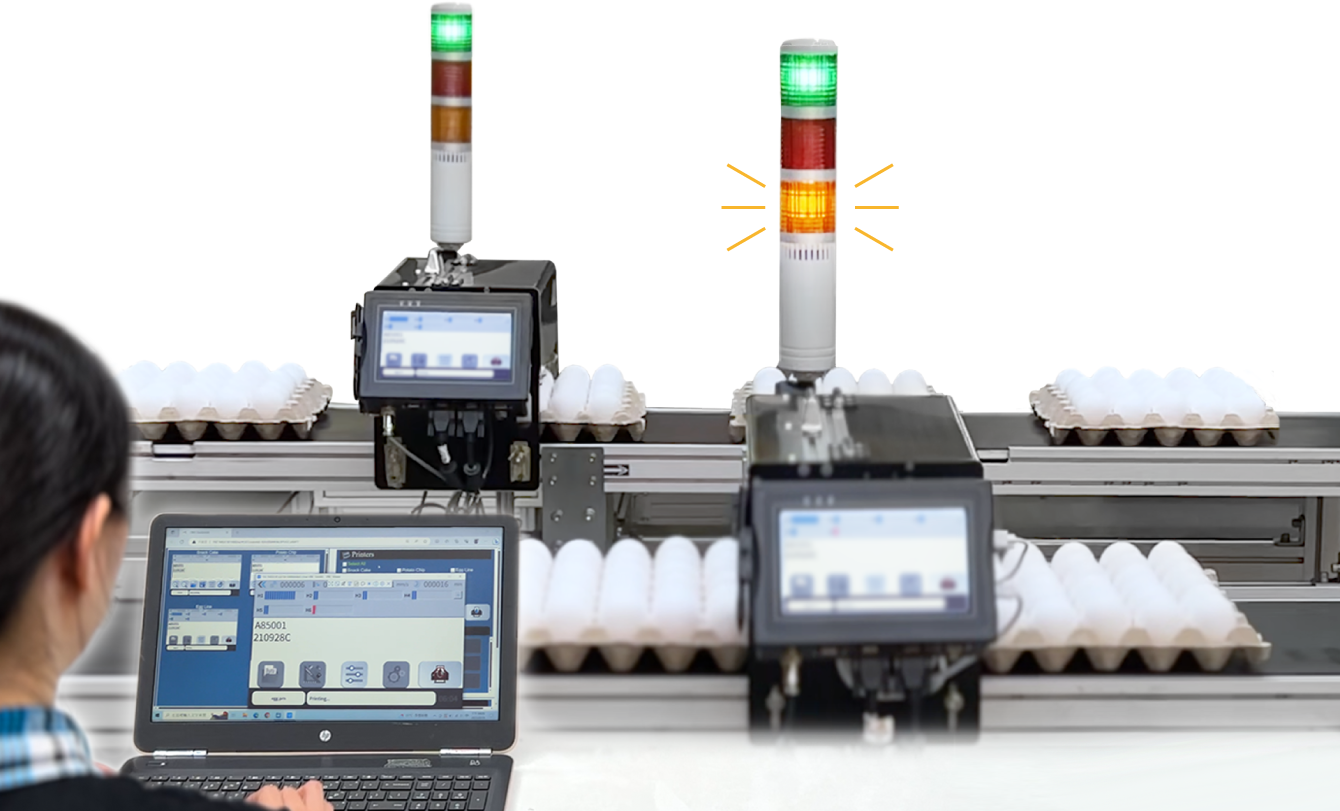

Get more efficiency from remote control and monitoring
- Remote control and monitor from a computer or a smartphone through an Ethernet or Wi-Fi connected network.

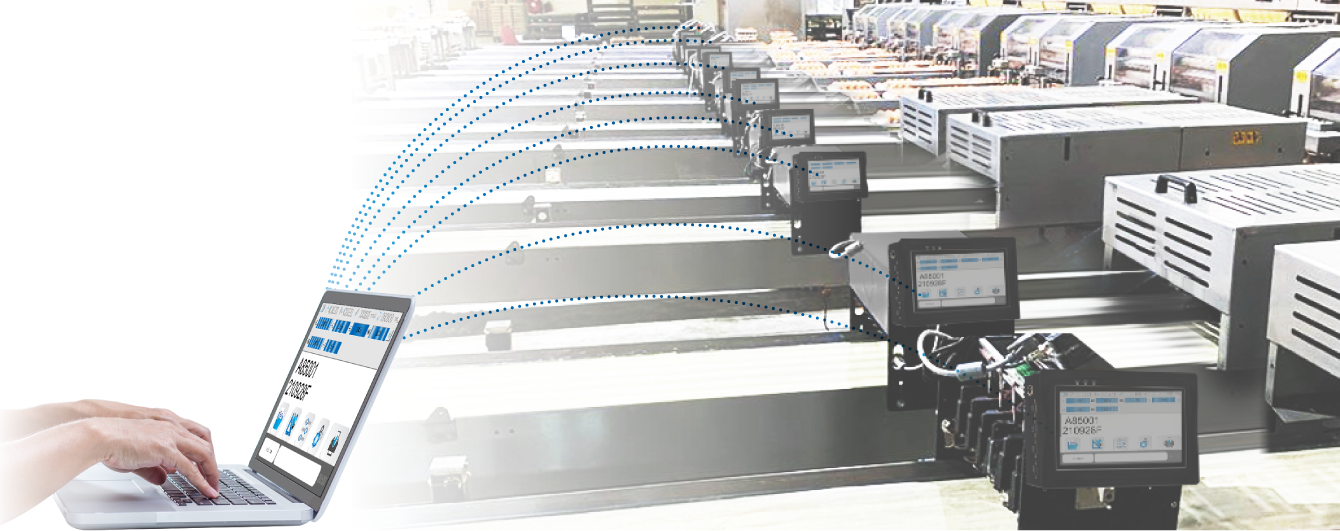

- Integration with an Inkjet Remote Control System, which can connect and manage up to 16 sets of controllers. You can send and change print job for all connected controllers.
Timely alert for low ink levels.
| Specifications | |
|---|---|
|
Power Supply |
AC 90- 220V, 50/60 HZ |
|
Acceptable differences in egg sizes |
5mm |
|
Distance between printheads |
40mm~50mm can be fixed during the installation |
|
Acceptable conveyor speed |
Max: 20 meters/per minute |
|
Nozzle Height |
12.7mm |
|
Print quantity |
Max: 12.7mm |
| Print height | 6 printheads: Max 120,000 eggs per hour |
|
controller |
7” touch screen, design print jobs directly, ideal for remote control and monitor. |
|
Print Resolution |
300 dpi x 300 dpi |
|
Print Capability |
Text, date-time codes, serial number, logo |
|
Images Format |
Bitmap 1 bit (*.bmp) |
|
Ink |
Aqueous food-grade ink, 42ml |
