Thermal Inkjet Printers

High Reliability - Dotjet TIJ printers have passed EFT immunity testing to Level 4 standards with peak voltages of up to +_4KV, better than most TIJ printers on the market.



Dotjet TIJ printers offer an impressive combination of functionality, simplicity, and compact design based on the core consideration of high printing quality and ease of use.



Three models of Dotjet TIJ printers were developed for different demand levels: The DJ1 was designed with a simple but robust structure for cost saving to apply basic coding and marking. The DJ45x satisfies most inkjet coding needs with user-friendly operation interface. Further, The DJ45plus is a versatile printer which performs excellently for advanced inkjet applications.The DJ800 is designed specifically for eggshell coding. Dotjet's in-house cartridges using market proven TIJ technology provide a cost effective and reliable method of coding eggshells.



Dotjet TIJ printers are ideal solutions for a wide range of coding and marking applications. Explore the worlds of Dotjet TIJ printers to find a proper solution for your customers.

DJ45x

  • Designed for user-friendly operation and flexible installations
  • Great performance in coding and marking for primary and secondary packaging
  • Abundant functions for diverse applications



The DJ45x was designed for flexible installations plus abundant applications. Its user-friendly operation interface with a 7” touch screen allows users to operate the printer institutively and directly.

The easy-to-use software with abundant functions simplifies the process of applications, such as flexibly designing a print template with various message objects and adjusting their formats.

Moreover, the DJ45x uses inks that have excellent performance for printing efficiency and quality for different packaging materials. With the multi-function DJ45x and high-performance inks, users can effortlessly achieve the coding and marking requirements for different customers and products.

7”Full-Color Touchscreen

The WYSIWYG operation interface with a 7” touch screen enables users to operate the printer straightforwardly. No PC is required. Even a beginner can build and manage print jobs quickly and efficiently.

The content of coding and marking can be complex, but the way to create it should be effortless. In the interface of print template creation, all the function icons have been arranged and organized around the template section. Users can intuitively pick up an object icon to add to the print template directly, set up the parameters then watch the adjusted layout immediately.

dj45x 01



Multiple Languages

Multiple languages are available on the operation menu.
International language character fonts in true type font file (.ttf) can be loaded into the printer.

dj45x 02







dj45x 03

Quickly Select a Print Job

Print templates are displayed with images. After typing in the prefix character of the file name, the selectable print templates will be listed. With the preview, users can click on the right file quickly from the numerous files.













PC Software

It will be a great experience to use Dotjet PC software for mass print message creations. Meanwhile, it is a helpful tool for an operator training. Through a built-in function, user can immediately know the ink consumption per print message when using this software.

dj45x 04



 dj45x 11

Plentiful Inkjet Printing Functions

The DJ45x is more than an inkjet printer for basic coding and marking because its easy-to-use software design for plentiful functions efficiently achieves a wide range of applications beyond your expectation.







Robust Print Head Module

The durable housing is made of milled and anodized aluminum. Two accessory options are available to assemble onto the printhead: An Anti-Shock Mechanism protects and ensures the printing results if any moving object on conveyor belt hits the printhead. Alternatively, a Fine-Adjustment Mechanism allows users to manually adjust the print distance with slight and accurate changes.



dj45x 05







GS1 Barcode
Compliance
      Able to print various GS1 barcodes for the global market.



dj45x 06


dj45x 06 2







Ink Types

Long decay time and excellent adhesion to most substrates are the main characters of hp TIJ2.5 inks.
Aqueous inks, solvent inks, UV-curable inks, and security inks are available for primary and secondary packaging printing.
Dotjet selects and simplifies the ink cartridge items for the wide range of inkjet applications to help customers reduce stock cost.

dj45x 07







dj45x 10

Specifications

Technology hp TIJ2.5
Power requirement AC110-220V, 50/60HZ
Display 7” Color LCD with LED backlight
Operating temperature 5℃-45℃ (41°F-112°F)
Controller operating system Linux
Message storage Up to 1,000 messages
Print head controlled ability Two hp TIJ2.5 print heads
Print line Multuple depand on character size
Print height Up to 12.7 mm
Print speed

Aqueous ink: max 60 meters/ per minute

Solvent ink: max 90 meters/ per minute

Max. print length 1 meter
Print resolution 300 x 300dpi
Ink throw distance 6mm is recommended
LED indicators Low ink, print on/ off
Print capability Alphanumeric, logos, date/time, shift code, serial number,lot/box number, GS1 barcodes/2D code, table, database and multiple languages characters print
User interface

WYSIWYG. Multiple languages available

(some may need translation)

Printhead data line Standard 75cm and 200cm. Longer cable is optioal
Weight Controller: 820g (Excludes bracket)
Print head: 380g (Excludes cartridge and bracket)
Dimension (L/W/H) Controller: 205 x140 x 68 mm / 8.1 x 5.5 x 2.7 inches
Print head: 130 x115 x 94 mm / 5.1 x 4.5 x 3.7 inches

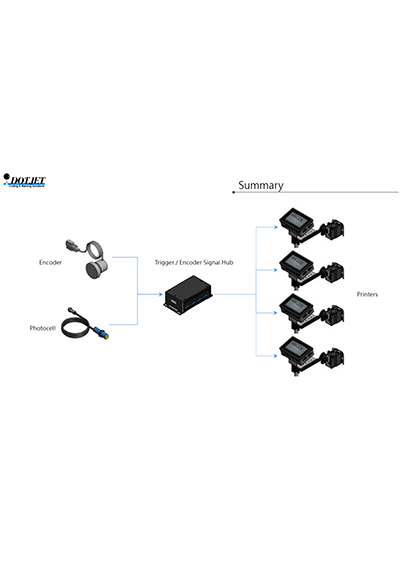

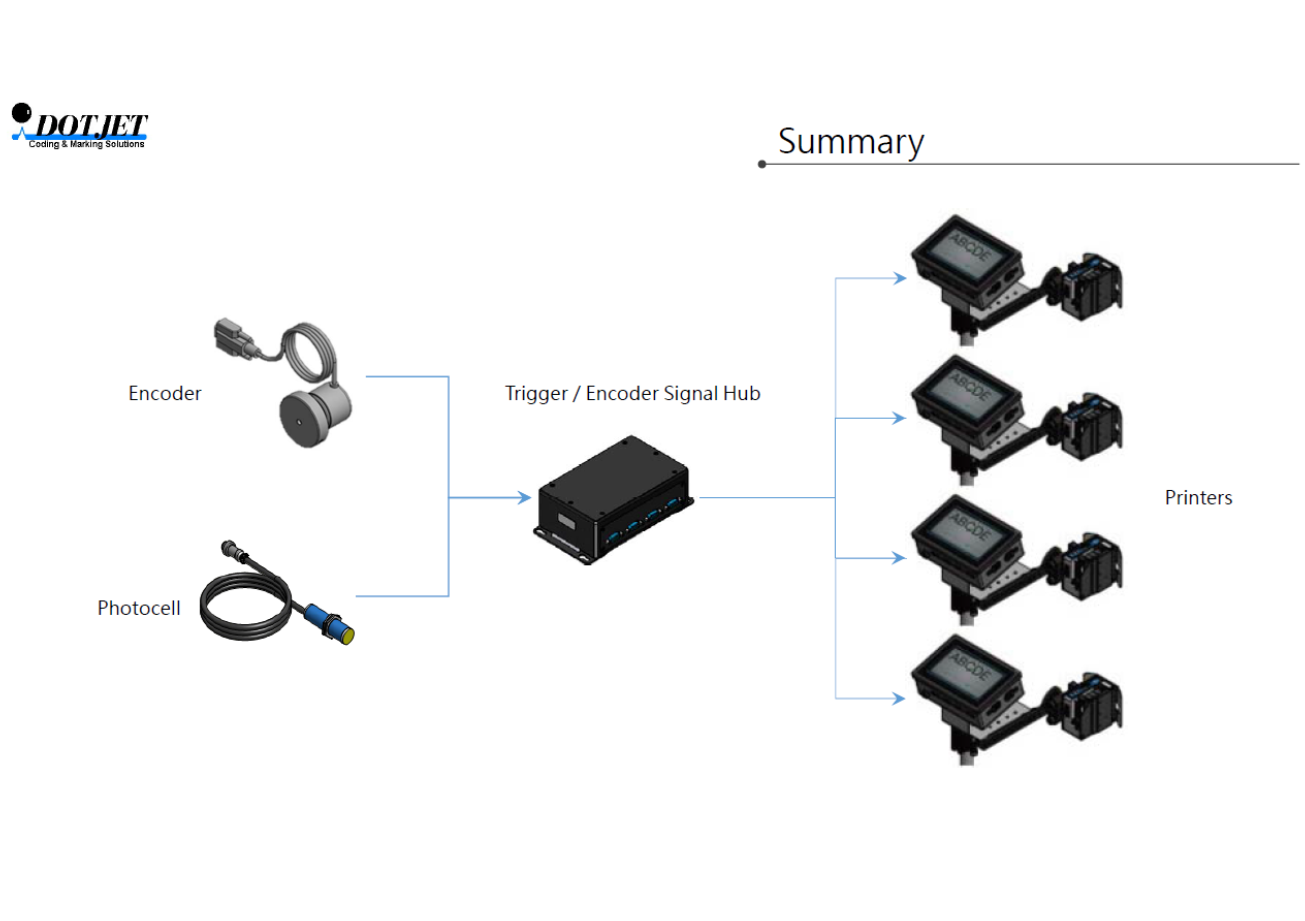

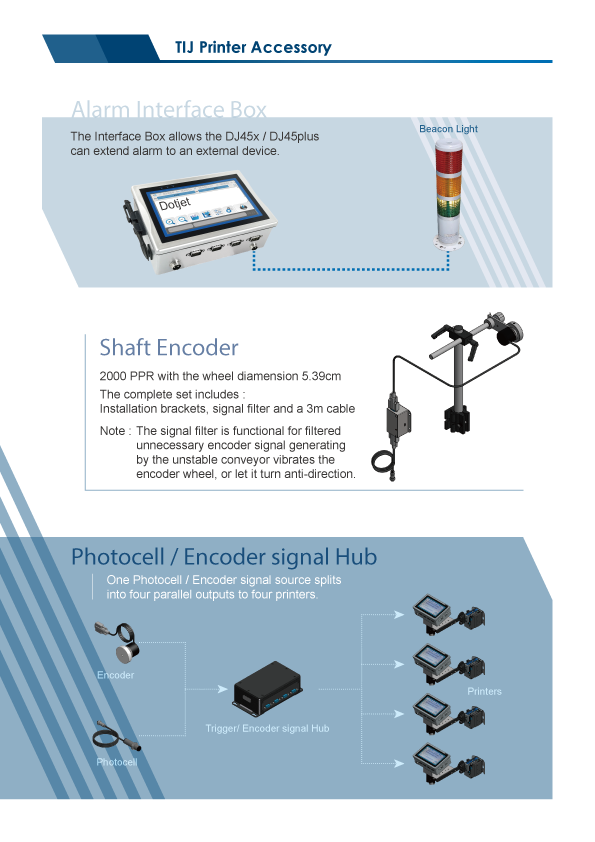

Optional Encoder, bulk ink supply, external low ink alarm



video cover dj45x 1 video cover dj45x 1 video cover dj45x 1



Let's get to work.

When you need an inkjet printer to do more than simply basic coding and marking, please contact Dotjet because we are good at advanced applications.
